Eastman 548-52H Round Knife Cutting Machine 5 1/4"
- Category: Cutting Machinery
- Subcategory: Cloth Cutting Machines - ROUND KNIFE
- Manufacturer: Eastman Machine
- Product number: 1-21L
Prices
- 1 to 10 for $1,600.00 per machine
Description

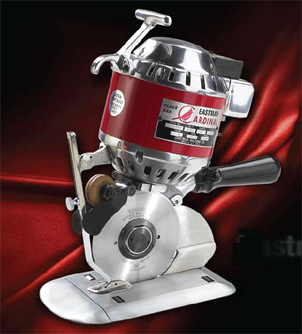

Eastman Standard Cardinal®
Model 548-52H
Standard Cutting for Lays up to 3.5"/8.89cm
Eastman's 548 Cardinal is the standard by which all round knife cutting machines are measured. The most popular standard round knife cutter in production today, with a myriad of blade sizes, motor and standard configurations, the Eastman 548 is in most industry cutting rooms.
Benefits
Accuracy
-Eliminates cutting distortion due to the Narrow Silhouette Standard and extremely low base plate
Stability
-Vibration-free cutting with smooth and easy maneuverability
Efficiency
-Simple handling of the machine due to its low center of gravity
-Single-hand engaging of power supply via the Patented Uni-Safe Terminal Block and Attachment Plug
-Ability to reduce speed to eliminate fusing, provided by the dual speed option
Durability
-Built with the highest grade materials available
Specifications
Motors:
-110v, 1ph: Available
-220v, 1ph: Available
-220v, 3ph: Available
-Single Speed: Standard
-Dual Speed: N/Available
Weight:21 lbs., 9.52kg.
Horsepower:.34hp, 1ph; .48 hp, 3ph
Sharpening Stone Grits
-120 Heavy: Available
-150 Medium: Available
-220 Fine: Available
Blade Size: 5.25"
Blade Size in cm: 13.3
Cutting Capacity: 3.125"
Cutting Capacity in cm: 7.95
Blades
-Double Bevel: Available
-Teflon Coated : Available
-Carbon Steel : Standard
-High Speed Steel: Optional
-Slotted: Optional
-Grooved: Optional
Notes: All shipping by UPS Ground Service. For other options or for international orders, please place your order and we will contact you to arrange proper shipping.
If you need other than standard 110V USA Power, and other than Standard Single-Speed Machine please contact us before ordering.
View video
Eastman 548 Parts and Instruction Book
Complete Eastman Parts Price List
